Introduction

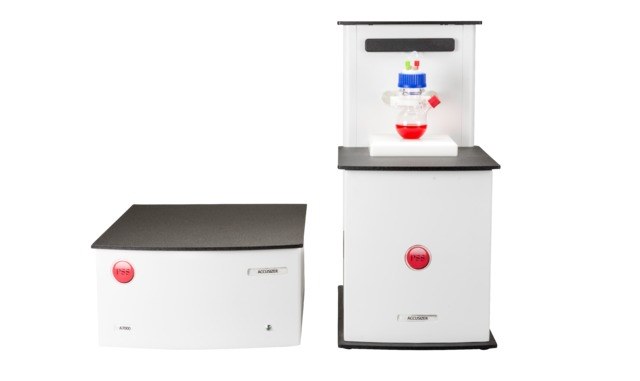

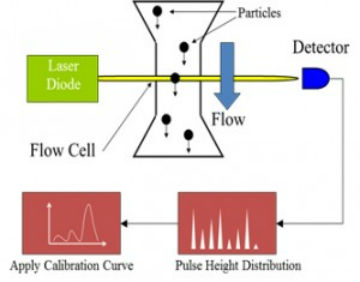

Using the unique SPOS (Single Particle Optical Sensing) technique, the A2000 is able to determine both the size distribution and particles/mL by measuring particles, one at a time.
Configuration can include combined micron and nano particle distributions.
Features
- Wide dynamic range for particle counting and able to operate in aqueous or organic mediums.
- Able to operate with autodilution for concentrated samples.
- Fast and automatic dilution chamber flushing between samples. Different modes of sample presentation to detector including:
1.Gravity drain
2. Autodilution
3. Metered drain.
- Wide dynamic range with several different detectors: 0.5-400 microns; 1-1,000 microns; 5-2,500 microns.
- Selectable agitation with magnetic stirring or mechanical stirring.
- Custom design of dilution vessel volume
Measures

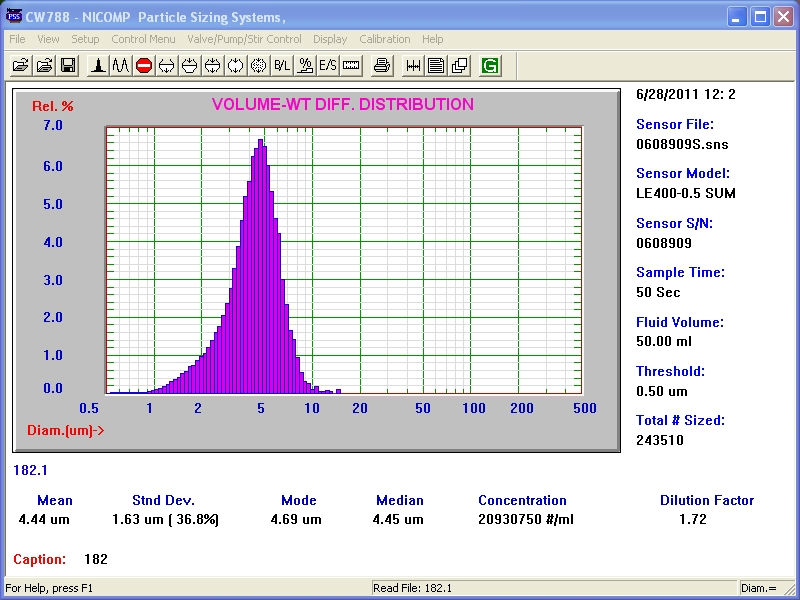

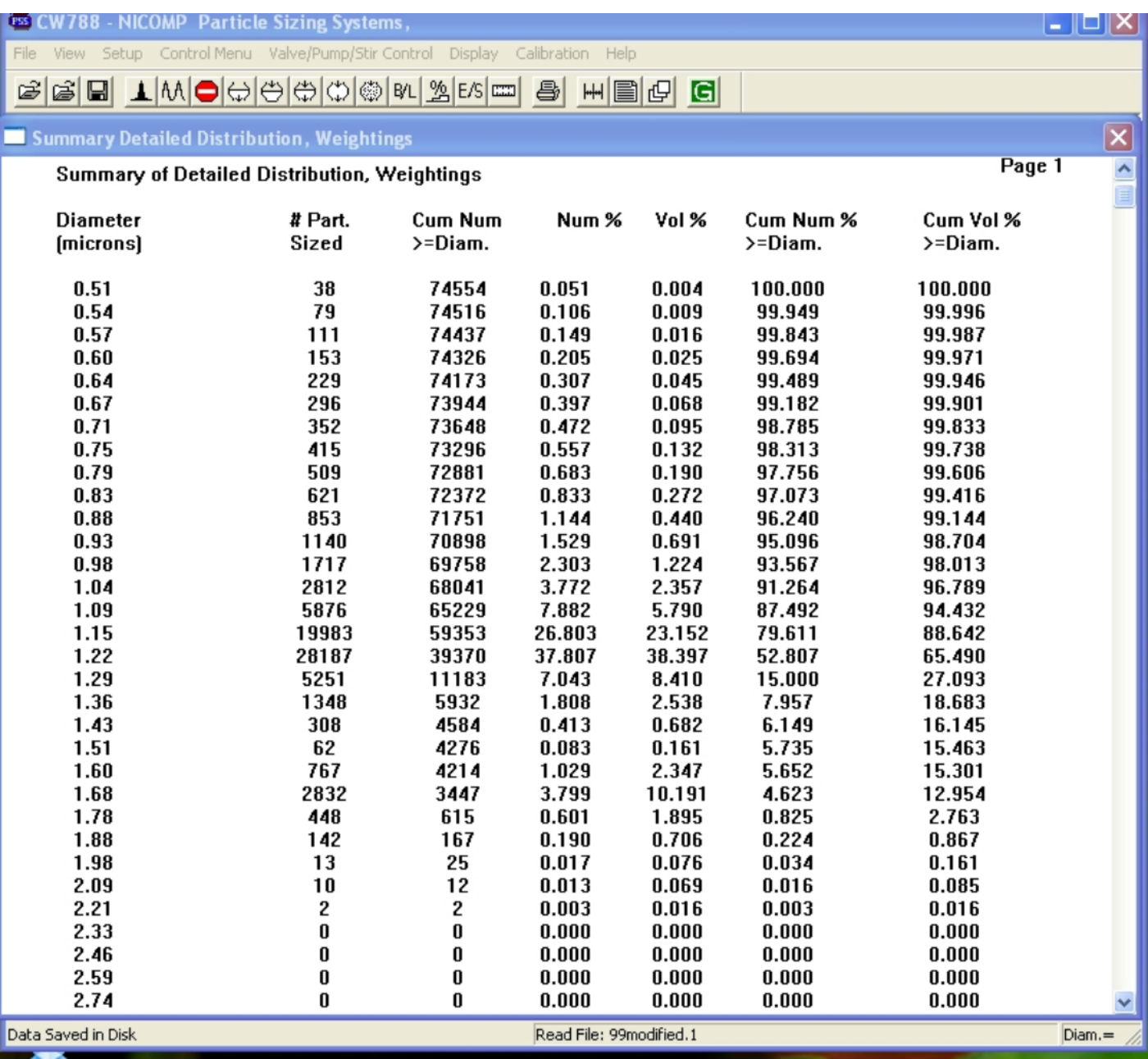

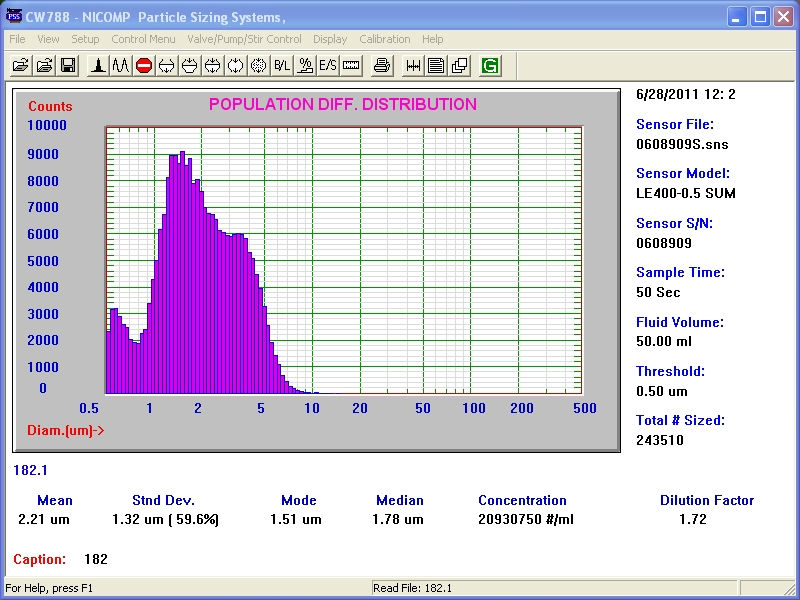

- Particle concentration (Particles/mL), Count distribution, area weighted distribution and volume weighted distribution in the range from 0.5 – 400 microns,5 – 2,500microns.
- Counts 100,000's of particles in 60 seconds. Able to accurately proportiion distribution to nominated sieve sizes.
- Calculates distribution mean, median distribution skew and deviation
