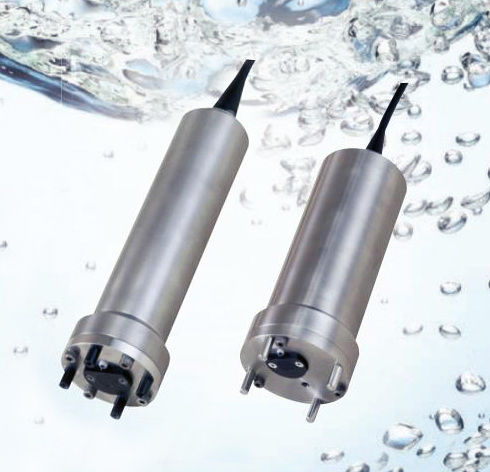

Dissolved Oxygen Sonde: Fluorescence Rinko II / IID

The Compact Optode is a small, precise data logger with an optical DO sensor.

Ideal for DO profiles of upward and downward casts as there is no hysteresis difference at same depths of each cast because of superior response and accuracy.

SKU: 164 Category:

Introduction

A new-technology sensor with fast response time, high stability and good accuracy. Ideal for measurement of Dissolved Oxygen gradients in water columns.

Features

  • Small and light with large memory capacity
  • Stirring of measurement sample not required
  • Resistant to bio-fouling
  • Two depth ranges: 300m and 6000
  • Non-volatile flash memory
  • Built-in calendar/time information
  • Direct connection to PC
  • Programmable calibration factors
  • Convenient Windows software
  • Robust titanium housing

Measures

The Rinko II is an digital output model for integration into 3rd party CTD-RMS units and operated at 12 V DC.

Both Dissolved Oxygen & Temperature are output as digital signals.

Additional information

DO Type

Fluorescence quenching

DO Range

0-120%

Temp Range

0-36 Deg C

Interval

1 – 30 seconds

Burst Time

1 – 1, 440 minutes

Materials

Titanium

Weight

1 Kg

Brand

JFE Advantech
